Load capacity 3.5 T JAC 4x2 Refrigerator Van Truck Light Engine 95 HP

Product Categories
Hubei Suny Automobile And Machinery Co., Ltd
Contact Now

Load capacity 3.5 T JAC 4x2 Refrigerator Van Truck Light Engine 95 HP

  • 1
  • 2
  • 3

Brand Name : SUNY

Model Number : HFC1040

Certification : CCC, ASME, BV, SGS, etc

Place of Origin : China

MOQ : 1 unit

Price : USD 6,000 ~ 12,000 / Unit

Payment Terms : T/T, L/C

Supply Ability : 500 Units / Month

Delivery Time : 15 ~ 20 working days

Packaging Details : After Waxing by Container , RO-RO , Bulk Freighter

Van dimensions : 3700*1810*1600 mm

Wheel base : 3500 mm

Load Capacity : 2000 kg ~ 4000 kg

Engine : 70 kw / 95 hp

Displacement (L) : 2.545

Number of gears : 5 forward gears & 1 reverse

left/right hand drive : Optional

Cabin : Single row , Optional A/C

Contact Now

Load capacity 3.5 T JAC 4x2 Small refrigerated trucks and vans Light Engine 95 HP

Box materials Corrugated iron ,

Optional Stainless steel , aluminum, insulation materials , Refrigerated trucks

Drive Type : 4x2 Optional 4x4 6x4 6x6 8x4 8x8

Load Capacity : 1T , 2T , 3T , 4 T

Products Technical Specification
Chassis Brand JAC
Product Name 4*2 Van Truck
Fuel type Diesel
Emission Standard Euro 4
Cabin Single row with A/C
Whole Vehicle
main dimensions (mm)		 Overall dimensions (L×W×H) 5430*1910*2500
Van dimensions 3700*1810*1600
Wheel base 2800
Front overhang 1105
Rear overhang 1235
Min. ground clearance 470
Weight data (kg) G.V.W 4025
Curb weight (chassis) 2200
Max payload 3500
Whole vehicle
main performance		 Max. speed (km/h) 90
Max. slope of climb (%) 30
Engine Model 4B2-95C40
Maximum power 70kw / 95hp
Number of cylinders 4
Displacement (L) 2.545
Engine Manufacturer Anhui whole Diesel Engine Co., Ltd.,
Gear box Number of gears 5 forward gears & 1 reverse
Axle Drive axle 3T
Suspension Front/rear Leaf spring 3/5+3,5/5+3,9/5+3,12/5+3
Steering Wheel left/right hand drive LHD
Brake system Service brake Oil braking
Electric device Rated voltage 24V
Tyres & Quantity 6.50R15 8PR & 6+1
Up-parts Description
Van description

Equipped with rear door ,

Box materials Corrugated iron

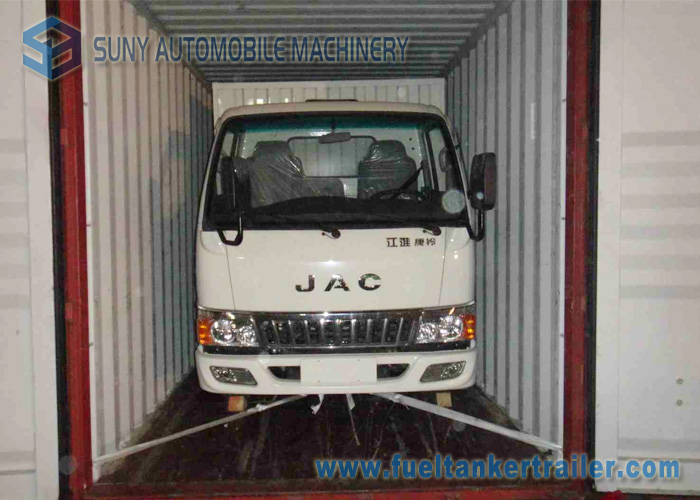

2 units Box Truck into One 40`HQ

Load capacity 3.5 T JAC 4x2 Refrigerator Van Truck Light Engine 95 HP
